Descripción

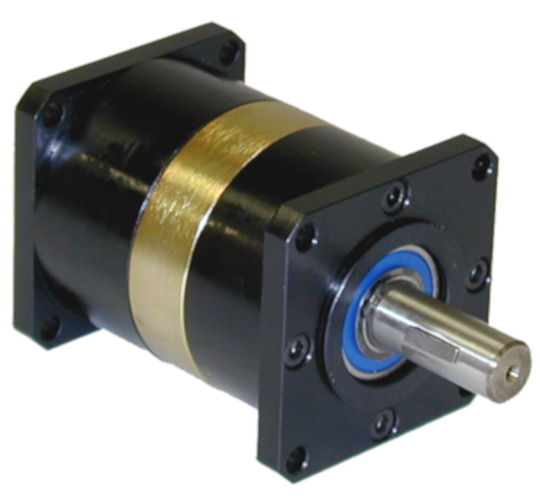

Part Number: 34PN005.5
Frame Size: NEMA 34
Ratio: 5.5:1
Torque, Nominal: 835 in-lb
Torque, Max Accel: 1160 in-lb
Length: 4.56 inches
Weight: 7.0 lbs
Input Speed: 5000 rpm max
Backlash: 10 arc-min
Low Backlash: 7 arc-min
Operating Temperature: -50 to 120 °C
Service Life: > 10,000 hours
Efficiency: 90%
Shaft Diameter:19.05 mm (0.750 inch)
Inertia: 2.040E-03 oz-in-sec2
2D Drawing:
